Design Example of a Six Storey Building: A Comprehensive Guide to Modern Multi-Family Architecture

The demand for smart, space-efficient urban housing has never been higher. As cities grow denser, landowners and developers are increasingly turning to mid-rise structures to maximize property value without compromising on lifestyle quality. If you are planning a residential project, analyzing a real-world design example of a six storey building is the perfect place to start.

Balancing aesthetic appeal, structural integrity, and regulatory compliance requires a strategic approach. Whether you are looking to build a premium rental property or a modern apartment complex, understanding the core components of a multifamily 6 story building design ensures a smooth transition from blueprints to construction.

In this comprehensive guide, we will break down the essential architectural features, spatial planning, and aesthetic elements that define a successful six-story residential project.

Architectural Elegance: 6 Storey Building Elevation Design

First impressions matter, especially in urban real estate. The exterior facade of a mid-rise building dictates its market value and how seamlessly it integrates into the surrounding neighborhood. A well-executed 6 storey building elevation design balances visual weight, materials, and functional elements like balconies and window placements.

+-------------------------------------------------------+
|  ROOF / PERGOLA: Open Terrace & Green Spaces          |
+-------------------------------------------------------+
|  FLOORS 4-6: Premium Textures, Light Colors, Glass    |
+-------------------------------------------------------+
|  FLOORS 2-3: Mid-Level Transition, Exposed Brick Accent|
+-------------------------------------------------------+
|  GROUND FLOOR: Guard Room, Parking, Secure Entry      |
+-------------------------------------------------------+

Visual Zoning and Material Contrast

To prevent a six-story building from looking like a monotonous concrete block, modern architects use visual zoning. This technique breaks the facade into three distinct horizontal sections:

• The Base (Ground Floor): Typically reserved for parking, secure entrance lobbies, and utility areas. Using robust, darker materials or clean structural columns creates a grounded, secure feeling.

• The Body (Floors 2 to 5): The main residential zones. Introducing contrasting textures—such as premium exposed brick cladding on the lower residential floors and smooth, light-toned plaster on the upper levels—creates a dynamic visual rhythm.

• The Crown (6th Floor & Roof): The top floor often features extended balconies, sleek pergolas, or rooftop greenery that softens the building’s silhouette against the sky.

Maximizing Natural Light and Ventilation

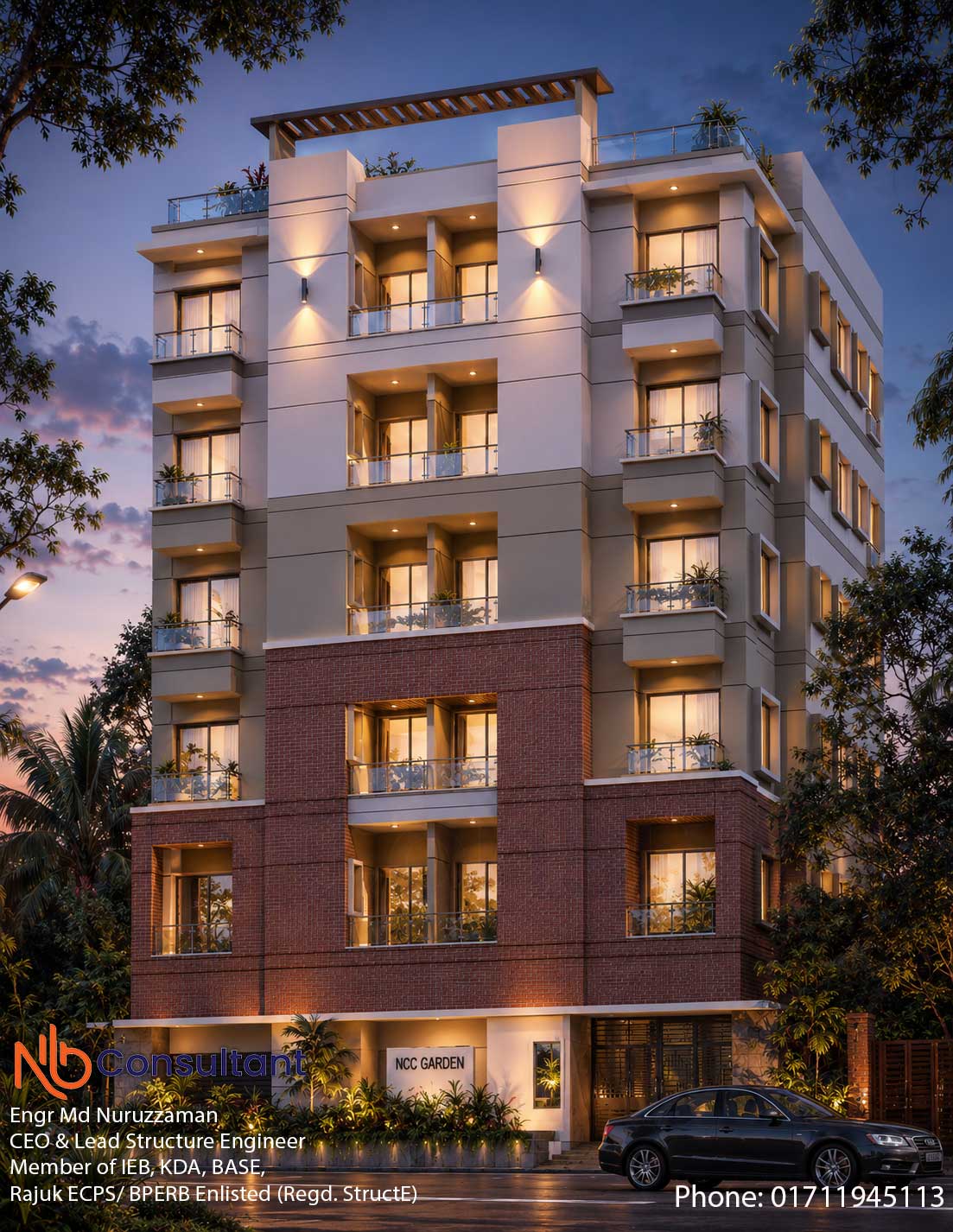

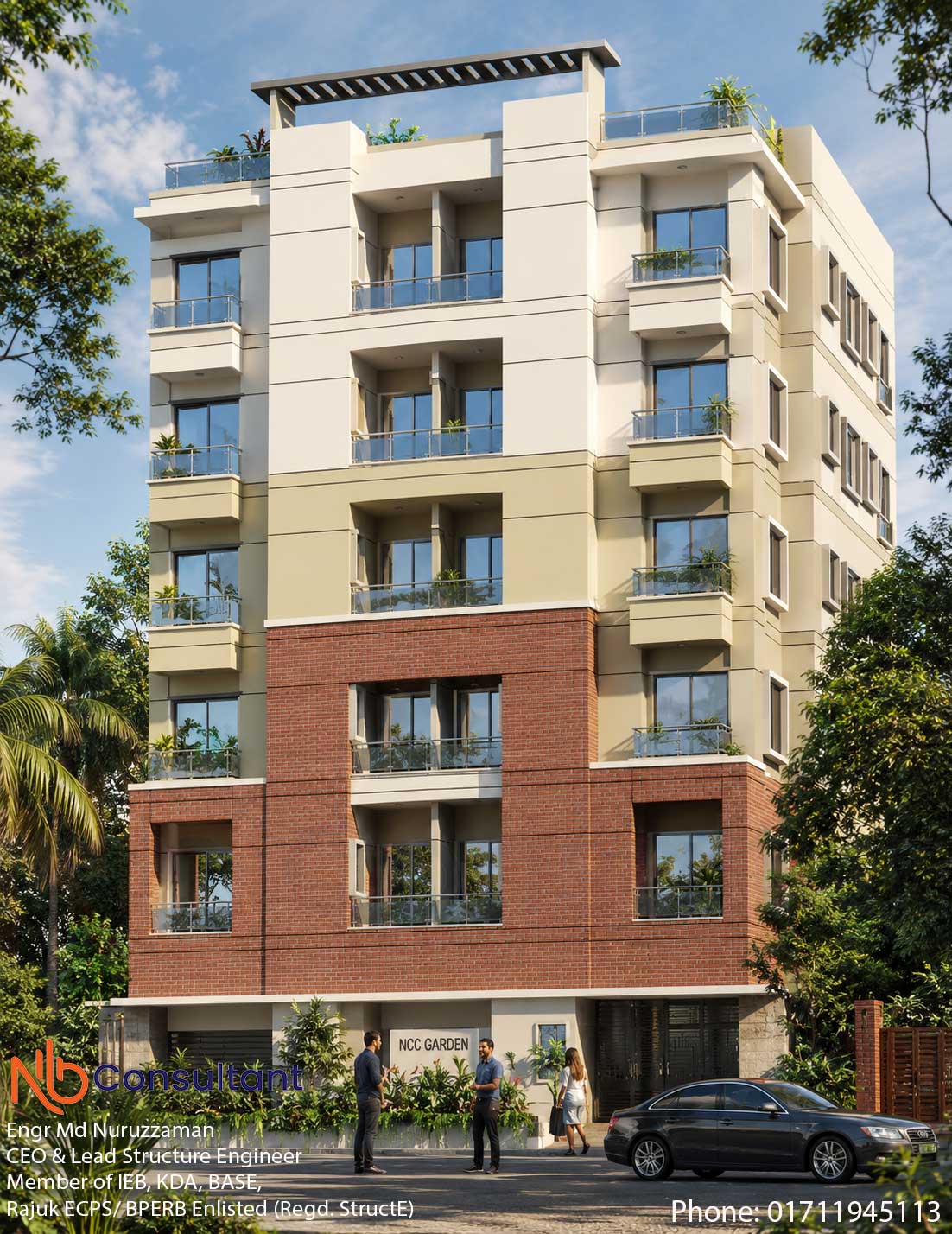

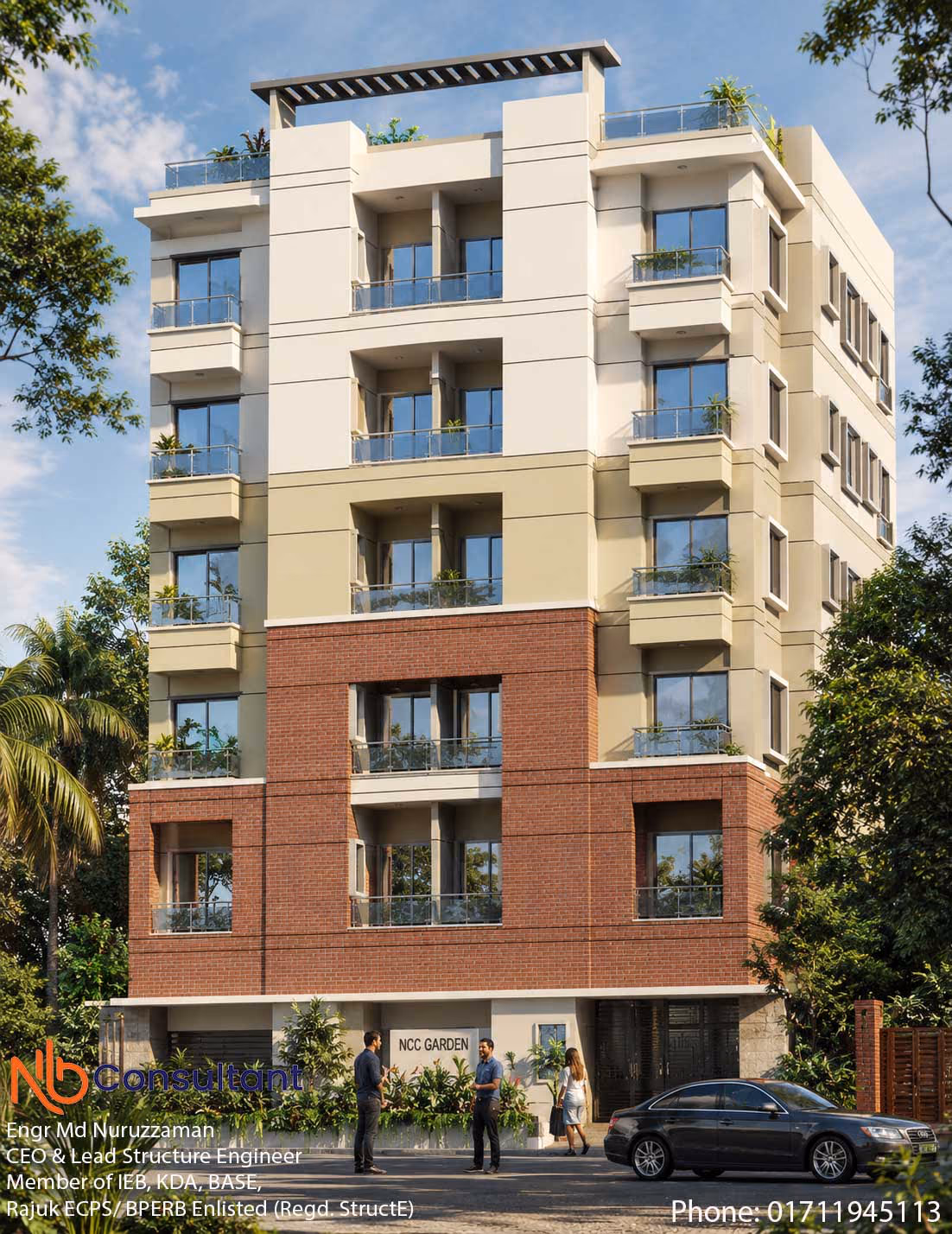

As shown in standard contemporary designs (like the NCC Garden project featured above), incorporating recessed balconies and floor-to-ceiling glass sliding doors serves a dual purpose. It adds depth and shadow lines to the elevation while ensuring every apartment is flooded with natural light and fresh air, significantly reducing energy costs.

Spatial Efficiency: Double Unit Floor Plan for 6 Storey Building

When it comes to multi-family living, maximizing rentable or usable square footage is the ultimate goal. For medium-sized urban plots, a double unit floor plan for 6 storey building configurations offers the ideal balance of privacy and efficiency.

What is a Double Unit Layout?

A double unit layout divides each typical floor plan symmetrically into two independent apartments, usually separated by a central core housing the staircase, lift, and lift lobby. This layout ensures that both families enjoy identical or highly comparable space distribution, views, and ventilation.

Key Components of an Optimized 3-Bedroom Double Unit Layout

The Importance of the Central Core

In a six-story structure, the central circulation core is the heart of the building. It must be designed strictly according to local building codes (such as Rajuk, KDA, or BNBC regulations in Bangladesh). A standard code-compliant core includes:

1. An Fire-Safe Staircase: Minimum width of 3 feet 6 inches to 4 feet for easy emergency evacuation.

2. An Elevator/Lift Shaft: Sized for an 8 to 10-person passenger lift.

3. A Lobby Space: Ample room for residents to move without blocking apartment entrance doors.

Structural Engineering Fundamentals for Mid-Rise Buildings

While the floor plans and elevations focus on livability and aesthetics, the structural framework ensures the building stands resiliently against environmental forces. A professional design example of a six storey building relies heavily on rigorous engineering calculations.

1. Foundation Design

Before a single column is cast, a thorough geotechnical soil test is mandatory. Depending on the soil bearing capacity of the site:

• Mat/Raft Foundations: Commonly used if the soil is moderately firm, distributing the building’s weight evenly across the entire plot footprint.

• Deep Pile Foundations: Necessary in areas with soft alluvial soil or high water tables to transfer the massive structural loads down to harder strata.

2. Reinforced Concrete Frame (Beam-Column System)

A six-story building typically utilizes a cast-in-place reinforced concrete (RCC) frame. High-strength reinforcing steel bars and optimal concrete mixes ensure that columns can handle both gravity loads (dead and live loads) and lateral loads (earthquake and wind forces).

Pro-Tip: Proper reinforcement lapping and column confinement zoning are critical in structural engineering to prevent catastrophic failure during seismic events. Always ensure your structure is designed by an IEB-enlisted or locally registered structural engineer.

Navigating Building Codes and Urban Approvals

You cannot bring a multifamily 6 story building design to life without regulatory approvals. Navigating municipal laws ensures your project avoids legal setbacks, fines, or demolition orders.

When submitting plans to local development authorities, ensure your design accounts for:

• FAR (Floor Area Ratio): Determines the total gross floor area you are allowed to build relative to your plot size.

• Setback Rules: The mandatory open spaces you must leave clear on the front, rear, and sides of the building.

• Mandatory Car Parking: Most city codes require at least one parking space per apartment unit on the ground floor or semi-basement.

• Fire Safety Regulations: Inclusion of fire hydrants, accessible fire stairs, and fire-rated doors.

Conclusion: Turning Your Vision into Reality

Designing a six-story building is a rewarding investment that requires a perfect marriage of art and science. From selecting a striking 6 storey building elevation design that commands attention to engineering a safe, code-compliant structural skeleton, every detail matters. By leveraging smart layouts like a double unit floor plan for 6 storey building, you can maximize your space, provide exceptional comfort to residents, and secure a high return on investment.

Are you ready to develop your own mid-rise residential project? Partnering with seasoned professionals ensures your building is beautiful, functional, and safe for generations to come.
