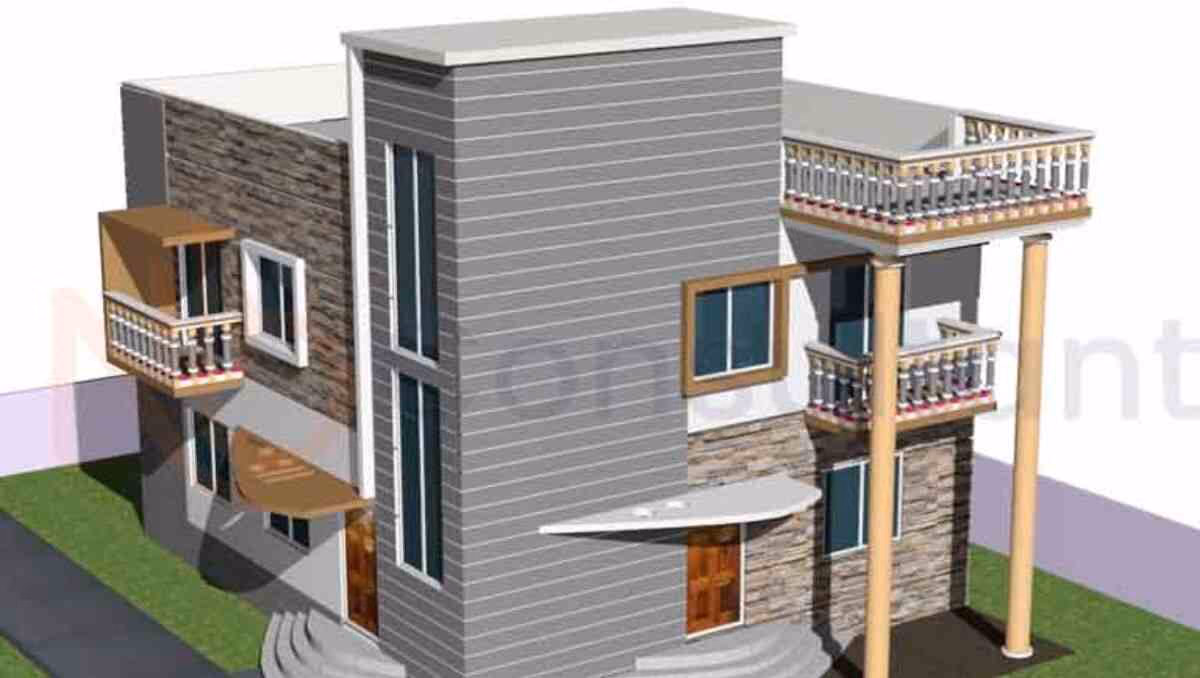

Small duplex house design at Gopalganj, South facing duplex home design
Small duplex house design Gopalganj plan south facing Duplex Home design at Gopalganj: 34 x 39 ft duplex plan south facing. This is a 44 ft by 60 ft land for a south-facing duplex building here. The client prefers a somewhat open environment.
Here the space is elongated. Within a small space. The client has one son and one daughter. Keeping the common rooms on the ground storey and moving the private rooms to the upper storey. Previously I showed some plans to the client, the client asked to change some things and finally after changing everything, this is the one they liked.
If you need a house plan like this, you can contact us. The client has roads on two sides. He has arranged the design with us taking the south and west sides as the front.
Architectural plan:
On the ground storey
One bedroom has been made, one bathroom has been made, there is a large drawing-cum-dining room, there is a kitchen room, there is a dining room, there is a store room
- Bedroom 12′-0″X13′-0″
- Kitchen 8′-0″X8′-0″
- Dining room drawing room
- Store room 10′-9″X5′-0″
- Family dining room 16′-5″X21′-6″
Here there are three bedrooms, one attached bathroom and one common bathroom and two attached verandas and there is a drawing-cum-dining room. There is a double-landing staircase
- Bedroom 13′-1″X12′-0″
- Attached bathroom 8′-0″X8′-0″
- Common bathroom 4′-0″X8′-0″
- Bedroom 2 -12′-0″X13′-0″
- Bedroom 3 -12′-0″X13′-0″
- Drawing-cum-dining room 15′-4″X13′-5″
- Veranda 7′-7″X3′-6″
Columns done are 12 nos
The client wanted it to look a bit nice. To look more beautiful within a low cost.
That is why I made his south-west side the front, placed some tiles on this side and made concrete posts for the veranda posts.
Seeing everything they are happy. If you prefer an even more beautiful house design than this, we will make it. You can contact us.
We do work for expatriate clients and have already done many works, step by step we will upload these to our portfolio.
</tbo
| Cement (Bag) 17.32 Sylhet Sand (F.M 2.50 Min.) (Cft) 0 Sand (F.M 1.2 Min.) (Cft) 32.47 Brick (Nos) 588.39 Rod 72.5 Grade (Kg) |
| Cement (Bag) 65.94 Sylhet Sand (F.M 2.50 Min.) (Cft) 74.18 Sand (F.M 1.2 Min.) (Cft) 49.46 Brick (Nos) 2240.34 Rod 72.5 Grade (Kg) 650.61 |
| Cement (Bag) 23.3 Sylhet Sand (F.M 2.50 Min.) (Cft) 26.21 Sand (F.M 1.2 Min.) (Cft) 18 Brick (Nos) 791.61 Rod 72.5 Grade (Kg) 434 |
| Cement (Bag) 37.09 Sylhet Sand (F.M 2.50 Min.) (Cft) 35 Sand (F.M 1.2 Min.) (Cft) 35 Brick (Nos) 1260.16 Rod 72.5 Grade (Kg) 980 |
| Cement (Bag) 42.08 Sylhet Sand (F.M 2.50 Min.) (Cft) 0 Sand (F.M 1.2 Min.) (Cft) 79 Brick (Nos) 1429.72 Rod 72.5 Grade (Kg) 455.39 |
| Cement (Bag) 28.5 Sylhet Sand (F.M 2.50 Min.) (Cft) 32.06 Sand (F.M 1.2 Min.) (Cft) 21.38 Brick (Nos) 968.29 Rod 72.5 Grade (Kg) 590 |
| Cement (Bag) 20.73 Sylhet Sand (F.M 2.50 Min.) (Cft) 23.32 Sand (F.M 1.2 Min.) (Cft) 15.55 Brick (Nos) 704.21 Rod 72.5 Grade (Kg) 260 |
| Cement (Bag) 34.91 Sylhet Sand (F.M 2.50 Min.) (Cft) 45.82 Sand (F.M 1.2 Min.) (Cft) 19.64 Brick (Nos) 1186.04 Rod 72.5 Grade (Kg) 1080 |
| Cement (Bag) 99.45 Sylhet Sand (F.M 2.50 Min.) (Cft) 74.59 Sand (F.M 1.2 Min.) (Cft) 111.89 Brick (Nos) 3378.97 Rod 72.5 Grade (Kg) 1363.4 |
| Cement (Bag) 44 Sand (F.M 1.2 Min.) (Cft) 211 Brick (Nos) 8367 |
| Cement (Bag) 591 |
| Sylhet Sand (F.M 2.50 Min.) (Cft) 312 |
| Sand (F.M 1.2 Min.) (Cft) 1205 |
| Brick (Nos) 25628 |
| Stone (Cft) 0 |
| Reinforcement 72.5 Grade (Kg) 6465 |
If you want to design a small duplex house, please contact us.
